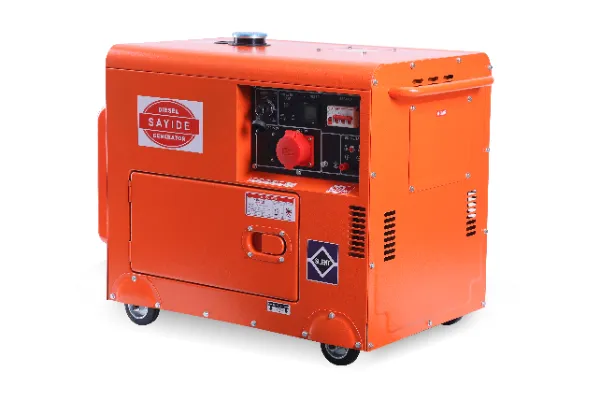

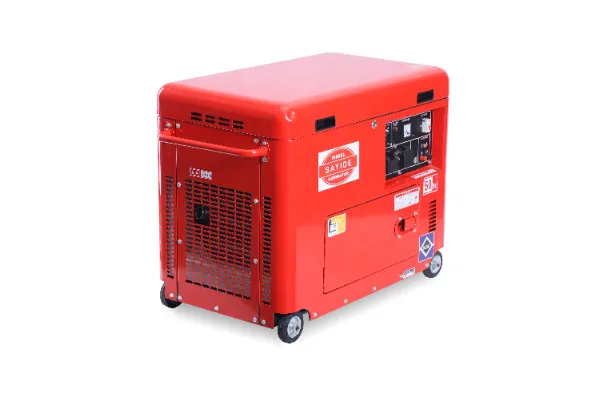

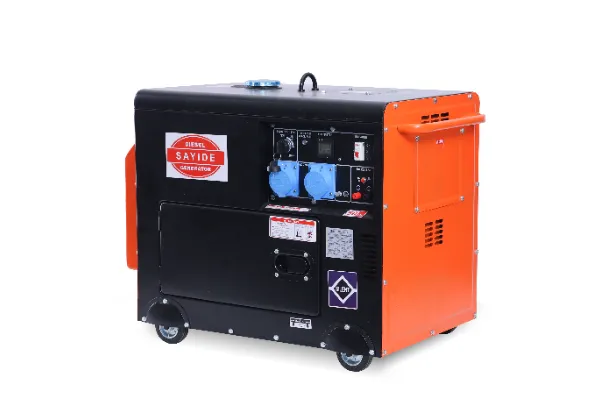

5-10 kW Single Cylinder Silent Diesel Generators

A 5kW silent diesel generator can simultaneously power a refrigerator (200W), lighting (400W), TV and internet equipment (350W), a microwave (1,000W), and a small water pump (1,000W) — with roughly 1,000W of headroom after a 20% safety margin. It will typically not run central air conditioning or large well pumps; for those loads, consider the 8-10kW range.

ZC Power single cylinder silent generators operate at 65-75 dB(A) at 7 meters, depending on model and load. For context: 65 dB is normal conversation; 75 dB is a vacuum cleaner at distance. Open-frame equivalents typically measure 85-95 dB — the silent canopy is roughly 10 to 15 times quieter in perceived loudness.

With the standard 15L tank (25L on the ZC-10S), expect approximately 7.5 to 9 hours at 75% load. Optional 30L or 50L extended tanks are available for longer uninterrupted runtime, and all models can be refueled while running following proper safety procedures.

At 75% load: approximately 1.6 L/h (5kW), 2.0 L/h (6.5kW), and 2.8 L/h (10kW). Running at 50% load reduces fuel use by roughly 25-30%. Diesel also stores significantly longer and more safely than gasoline — important for standby units that sit idle for months.

Single-cylinder engines are simpler, lighter, and more affordable — best for stable loads and intermittent use. Twin-cylinder engines deliver smoother power with less vibration, handle fluctuating loads better, and suit extended continuous operation at higher outputs. In the 5-10kW range, single-cylinder is the cost-effective choice for most standby and portable applications.

Yes. Every generator is configured to your destination country’s grid — 50Hz or 60Hz, single-phase (110-240V) or three-phase (380-415V) — as a standard part of the order process, not an extra-cost option. Tell us your country and application, and our engineers will configure the correct voltage, frequency, and outlet arrangement.

The warranty covers defects in materials and workmanship on the engine, alternator, control system, and canopy for 1 year or 1,000 operating hours from delivery. Claims are processed directly by ZC Power as the manufacturer — no intermediary — with replacement parts shipped by air freight to minimize downtime.

Yes. All models can be configured for ATS compatibility at the time of order. The generator will automatically start, assume the load, and shut down when grid power returns — no manual intervention. Ideal for unattended sites, telecom installations, or homes where the primary user may not be present during an outage.

We ship worldwide from our factory in Jining, Shandong Province, China. Standard shipping is sea freight (FOB or CIF), with transit of 15-40 days depending on destination; air freight is available for urgent orders. All export documentation is prepared for you — the shipment arrives ready for customs clearance.

Routine maintenance is straightforward: check oil before each use, change oil and filter every 100-200 hours, replace the air filter as needed (more often in dusty environments), clean the fuel filter every 300 hours, and check battery charge monthly on standby units. The single-cylinder design means fewer components and simpler access than multi-cylinder engines.
